- Multi-protocol digital radio: Designed to operate under NXDN or DMR digital and FM
- analog protocols

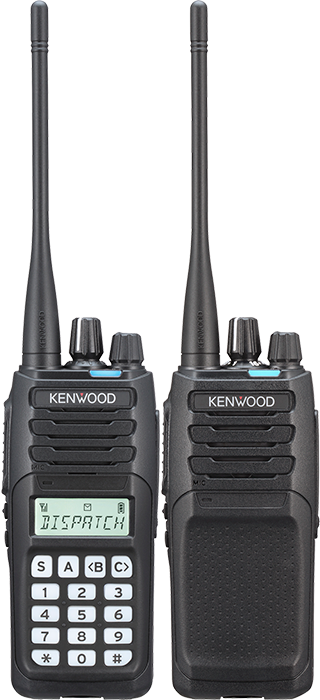

- Choose from direct & intuitive LCD with standard keypad or basic enclosures
- Easy visible Display: 8-digit LCD models featuring high-contrast, white backlit LCD
- Large 7-Color LED indicator on the top panel
- Selective Power-on LED
- Selective Call Alert LED
- Battery Level Indication
- Multi-status function indication
- RF output power 5W both on VHF/UHF
- Mixed Zone – analog and digital
- Renowned KENWOOD Audio Quality: TX/RX audio profile with optimizable
- digital processor
- Audio Equalizer: Flat, High, Low
- Auto Gain Control: On, High, Low, Off
- Noise Suppressor
- Microphone type settings
- Multiple Scan Functions; Dual Priority, Single Priority, Single Zone, Multi,
- Normal Scan
- VOX & PTT –triggered Semi- VOX, Voice-operated TX
- Emergency Function: Customizable Emergency Profile
- Lone Worker
- Max / Min Volume setting & Volume control
- Voice Announcement
- Remote Stun / Kill / Check
- Front Panel Programming Mode (for Keypad model)
- Electronic Serial Number (ESN)
- MIL-STD-810 C/D/E/F/G
- IP54 and IP55
- Intrinsically safe option (Available later)
| General | NX-1200DV | NX-1300DU | |
|---|---|---|---|
| Pre-set Frequencies | Type 1 | 136-174 MHz | 450-520 MHz |
| Type 2 | 400-470 MHz | ||
| Max. Channels per Radio | 260 (64 for basic model) | ||
| Number of Zones | 128 (4 for basic model) | ||
| Max. Channels per Zone | 250 (16 for basic model) | ||
| Channel Spacing | Analog | 30*1 / 25*1 / 15 / 12.5 kHz | |
| Digital | 12.5 / 6.25 kHz | ||
| Power Supply | 7.5 VDC ±20 % | ||
| Battery Life | DMR | Analog/NXDN | |
| KNB-45L (2000mAh) | Approx. 14.5 hours | Approx. 11 hours | |
| KNB-69L (2550mAh) | Approx. 19 hours | Approx. 14 hours | |
| Operating Temperature(Radio only)*2 | -22°F to +140°F (-30°C to +60°C) | ||
| Frequency Stability (-30 to +60°C; +25°C Ref.) | ±0.5 ppm | ||
| Antenna Impedance | 50 Ω | ||
| Dimensions | (W x H x D) Projections Not Included | ||
| Radio with KNB-45L/82LCM | 2.13 x 4.84 x 1.32 in (54 x 123 x 33.5 mm) | ||
| Radio with KNB-69L | 2.13 x 4.84 x 1.48 in (54 x 123 x 37.5 mm) | ||
| Weight Radio Only | 6.17 oz (175 g) | ||
| Radio with KNB-45L/82LCM | 10.41 oz (295 g) | ||
| Radio with KNB-69L | 10.93 oz (310 g) | ||
| FCC ID | Type 1 | K44501000 | K44501101 (pending) |
| Type 2 | K44501100 | ||
| IC Certification | 282F-501000 | 282F-501100 | |
| Receiver | NX-1200DV | NX-1300DU | |
| Sensitivity | NXDN® @ 6.25 kHz Digital (3% BER) | 0.18 μV | |
| NXDN® @ 12.5 kHz Digital (3% BER) | 0.22 µV | ||
| DMR® @ 12.5 kHz Digital (1% BER) | 0.25 µV | ||
| DMR® @ 12.5 kHz Digital (5% BER) | 0.18 µV | ||
| Analog @ 12.5/25 kHz (12 dB SINAD) | 0.24 µV / 0.20 µV | ||
| Selectivity | Analog @ 12.5 / 25 kHz | 68 dB / 74 dB | |
| Intermodulation Distortion | 70 dB | ||
| Spurious Rejection | 70 dB | ||
| Audio Distortion | 7% | ||
| Audio Output Power | 1 W / 12 Ω (Internal Output) | ||
| Transmitter | NX-1200DV | NX-1300DU | |
| RF Power Output | (High / Low) | 5 W / 4 W / 1 W | |
| Spurious Emission | -70 dB | ||
| FM Hum & Noise | Analog @ 12.5 / 25 kHz | 40 dB / 45 dB | |
| Audio Distortion | 2% | ||
| DMR Digital Protocol | ETSI TS 102 361-1, -2, -3 | ||
| Emission Designator | 16K0F3E, 11K0F3E, 8K30F1E, 8K30F1D, 8K30F7W, 4K00F1E, 4K00F1D, 4K00F7W, 4K00F2D, 7K60FXD, 7K60F7W | ||
*1 25 / 30 kHz in VHF/UHF Bands excluding T-Band are not included in the models sold in the USA or US territories.
*2 Operating temperature specification for a Li-ion battery is -10°C to +60°C [14°F to +140°F].Analog measurements made per TIA603. Specifications are measured according to applicable standards.Specifications are subject change without notice, due to advancements in technology.
FleetSync® is a registered trademark of JVCKENWOOD Corporation in the United States and/or other countries.NXDN® is a trademark of JVCKENWOOD Corporation and Icom Inc.NEXEDGE® is a registered trademark of JVCKENWOOD Corporation.All other trademarks are the property of their respective holders.
KNB-84L
Li-ion Battery Pack (7.4V/1900mAh) [IP67]
KSC-35S
Rapid Charger (for Li-ion KNB-45L/69L/84L)
KRA-22/23
VHF/UHF Low Profile Helical Antenna
KMC-45D
Speaker Microphone
KHS-31C
C-Ring PTT Ear Hanger Headset
KSC-43
Rapid Charger (for Li-ion KNB-45L/69L/84L & NiMH KNB-29N/53N )
Use below photo data.
KRA-26/27
VHF Helical Antenna UHF Whip Antenna
KHS-26
Earbud In-line PTT Headset
KBH-10
Belt Clip
KVC-22
DC Vehicular Charger Adapter
KRA-41/42
VHF/UHF Stubby Antenna
KHS-27A
D-Ring In-line PTT Headset
