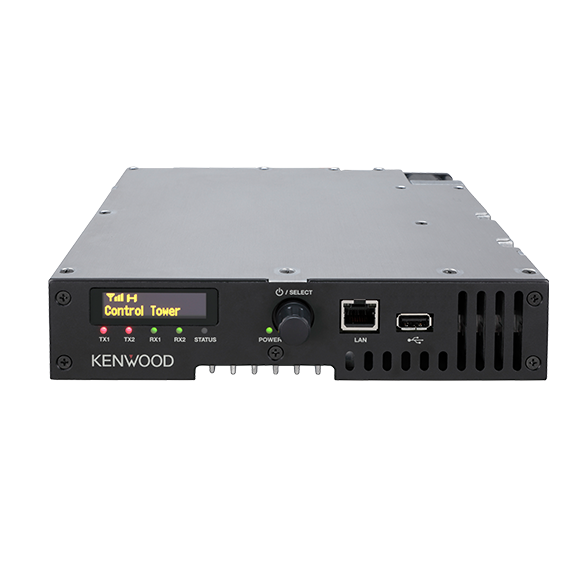

NXR-1800 E2
50 – 1 W RF Output Power (Up to 50 W @ 50%, 25 W @ 100% Duty Cycle)
Light, Compact and Space-Efficient
1.71-inch OLED with Icons and Numeric Displays
Thermal-Controlled Cooling Fan
External Power Supply
Up to 32 Channels
Dual Digital Protocol: DMR Tier II / NXDN Conventional*2, *3
(programmable one at a time)
USB-A Connector Ready for Audio Accessories
External In/Out Pin from DB25
Non-repeat Simplex / Semi-Duplex Mode for Analog and NXDN Digitall*2, *3
Hot Standby System Redundancy
Built-in IP Network Adapter
Unicast and Multicast Call Routing
SNMP Protocol for Direct Reporting to a Generic System*3
Supports G.711 Audio Codec (for Test onsole and Third-party Applications)
IP Remote Management (Monitor / Control / Programming / Test Console)
Ready for IPIF to External Applications (for IP Console, OTAP) / Voice Logging
Built-in SIP IF without External IP Console or Gateway (Digital Only)*1, *2, *3
IP Remote Control Interface (IPRCI)*3
Enhanced Security (HTTPS)
CW ID
Hang Timer
Multi-Site Conventional IP Network up to 16 Sites (for both Digital and Analog)*2
IP Networking Compatible with NXR-5000 (NXDN)*2,*3, legacy KTI-3 (NXDN)*2,*3
and KTI-5 (DMR)*2
| General | NXR-1700E |
|---|---|
| Frequency Range | 136 – 174 MHz |
| Channel Capacity | 32 |
| Channel Spacing Analog Digital | 30* / 25 */ 15 / 12.5 kHz 12.5 / 6.25 kHz |
| PLL Channel Step | 2.5 / 3.125 / 5 / 6.25 kHz |
| Power Supply | 10.8 – 15.6 V DC |
| Current Drain Standby Transmitting | 0.6 A 12.0 A (Max. power), 9.0 A (25 W) |
| Operating Temperature | -22 °F to + 140 °F (-30 ºC to +60 ºC) |
| Frequency Stability | ± 0.5 ppm |
| Antenna Impedance | 50 Ω |
| Dimensions | (W x H x D) Projections Not Included 8.21 x 1.73 x 8.33 in (208.5 x 44.0 x 211.5 mm) |
| Weight Radio | 4.18 lb (1.9 kg) |
| FCC ID | K44513100 |
| ISED Certification | 282F-513100 |
*25/30 kHz in VHF Band excluding T-Band are not included in the models sold in the USA or US territories. Analog measurements made per TIA603. Specifications are measured according to applicable standards. Specifications shown are typical and subject to change without notice, due to advancements in technology. Details and timing of firmware and software updates are subject to change without notice.
| Receiver | |
|---|---|
| Sensitivity DMR (5 % BER) DMR (1 % BER) NXDN 12.5 / 6.25 kHz (3% BER) Analog (12dB SINAD) | 0.22 μV 0.28 μV 0.25 / 0.20 µV 0.25 µV |
| Selectivity Analog @ 25 / 12.5kHz (TIA603) Analog @ 25 / 12.5kHz (TIA603E) | 83 / 77 dB 80 / 50 dB |
| FM Hum & Noise Analog @ 12.5kHz Analog @ 25kHz | 50 dB 55 dB |
| Intermodulation | 80 dB |
| Spurious Rejection | 90 dB |
| Transmitter | |
| RF Power Output | 50 – 1 W (50 W @ 50% Duty, 25 W @ 100 % Duty) |
| Spurious Emission | -80 dB |
| FM Hum & Noise Analog @ 12.5kHz Analog @ 25kHz | 50 dB 55 dB |
| Audio Distortion | 1% |
| Emission Designator | 16K0F3E, 11K0F3E, 7K60FXD, 7K60F7D, 7K60FXE, 7K60F7E, 7K60FXW, 7K60F7W, 8K30F1E, 8K30F1D, 8K30F7W, 4K00F1E, 4K00F1D, 4K00F7W, 4K00F2D |
